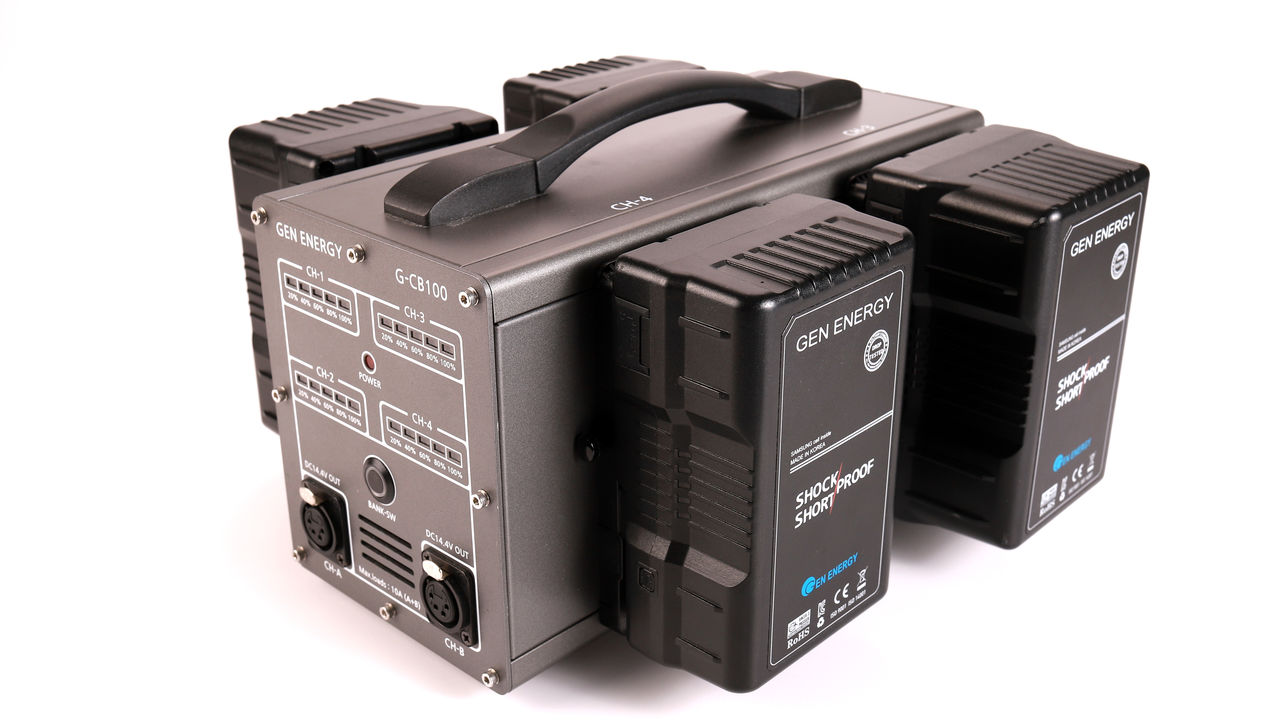

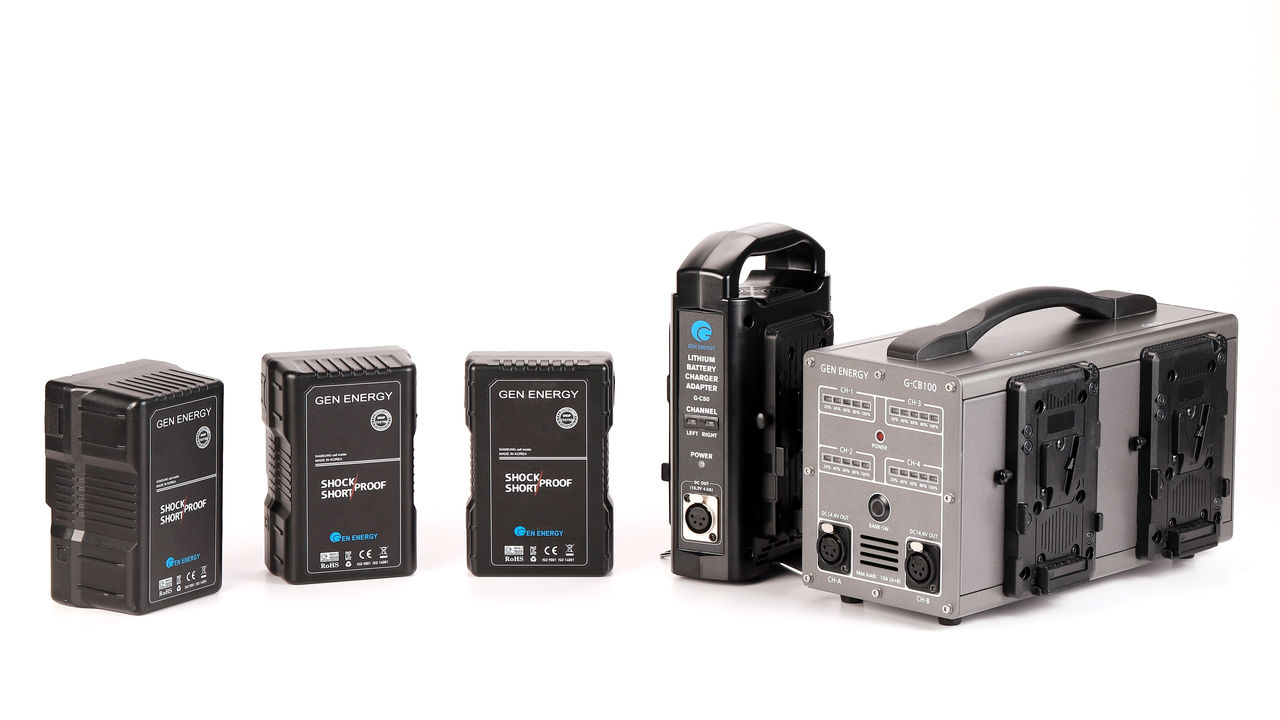

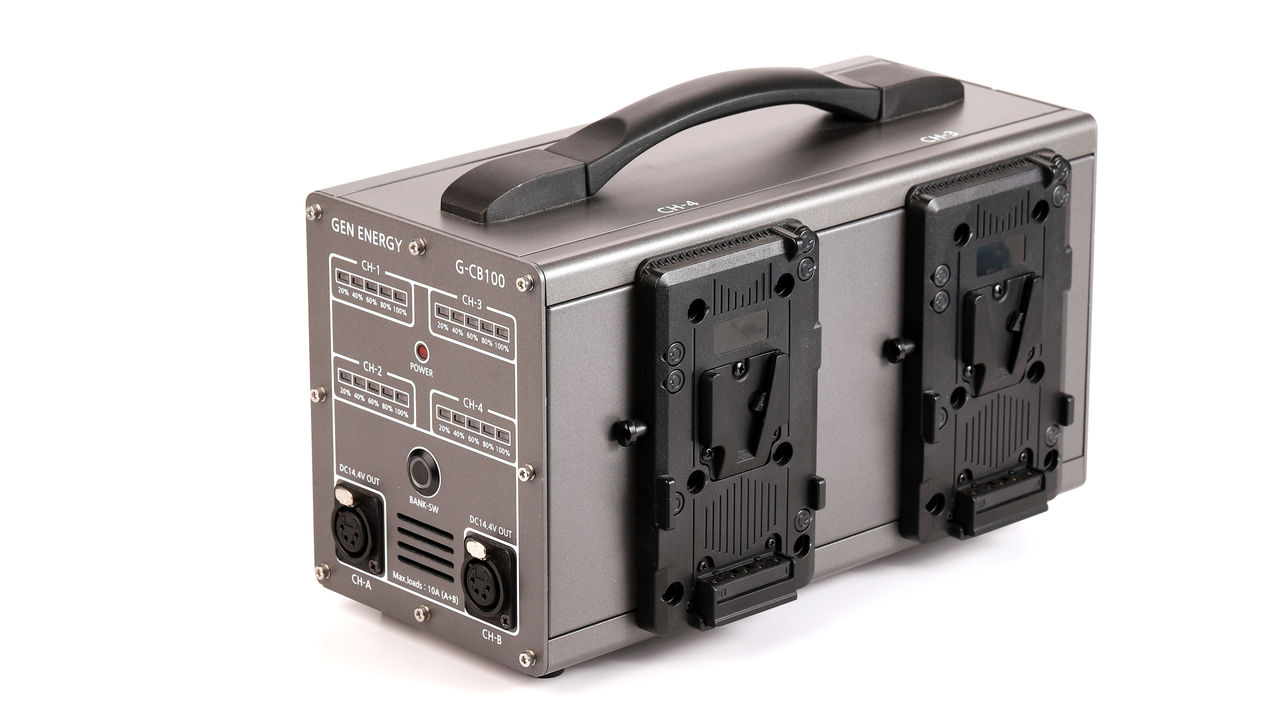

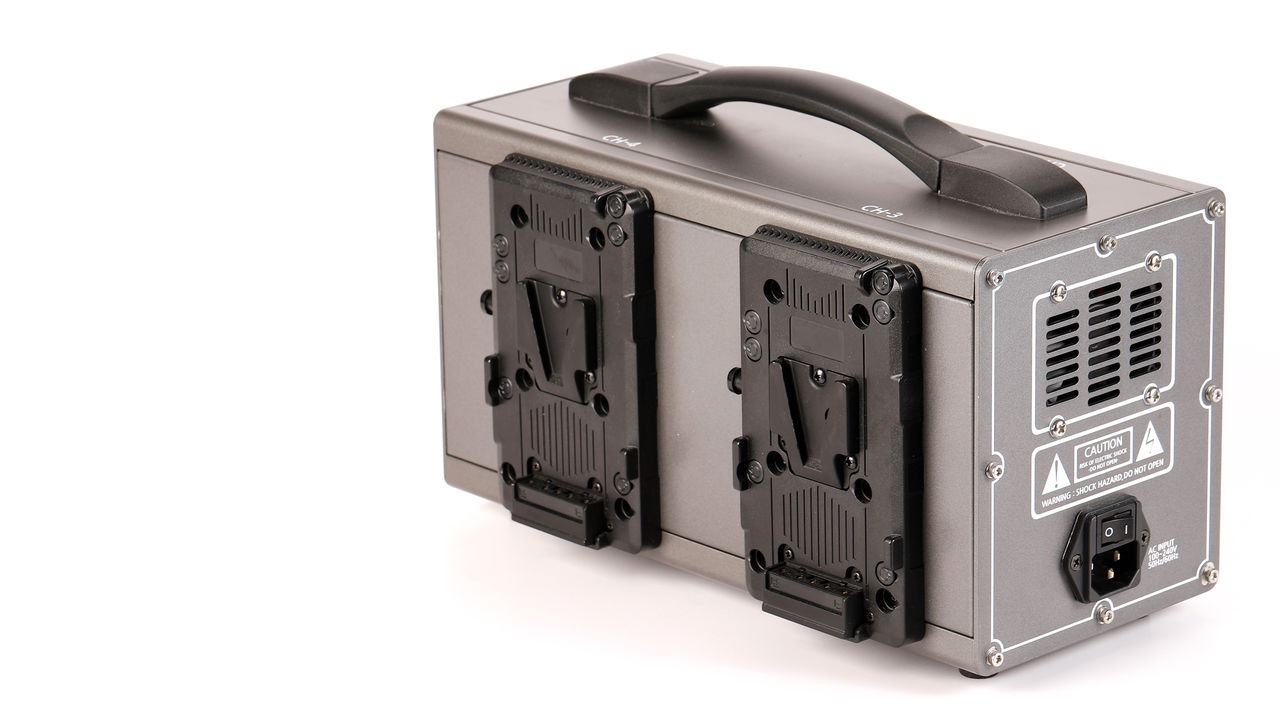

G-CB100 V-MOUNT BATTERY HIGH SPEED CHARGER & BANKER
  • Aluminium body (obtain heat dissipation and EM shut-off effects from aluminum.)
  • high speed charging
  • Anti Overheat
  • 100 levels of indicator
  • Charging :
    4ch, 6A charging simultaneously.
    98Wh => Charged at 3A Automatically.
    Other companies' battery packs -> Charged at 3A Automatically.
  • Discharging :
    2ch XLR outlets :
    If AC input, then 14.4V is discharged from AC power.
    If AC is disconnected, 14.4V is discharged, 10A sum continuously from battery one by one, if 290Wh used, 290 x 4 = 1160Wh discharged continuously.
    You can exchange the 100% discharged battery pack with new one, hot swappable.


The Gen Energy G-CB100 measures the voltage inside the battery in 100 steps and reflects it in real time.
This is indicated by 5 LED indicators. When the 5 indicators are turned on, they are displayed in a simplified format, such as 100% state of charge, 99~95%, and 94~90%. Because they do not adopt low-durable displays such as liquid crystal panels, they can cope with shock and temperature changes.

Specification
Powermax.480W
input AC 100V ~ 240V 50/60Hz, 8A max.
Output 16.8VDC  6A/ch
Terminal V-MOUNT terminal
Dimension130 x 155 x 289 mm / 5.1 X 6.1 X 11.4 "
Weight4 Kg / 8.8 lbs
Charging time (16.8V / 6A CC.CV mode)
G-B100/98Wabout 3 H
G-B100/160W
about 3 H 20 M
G-B100/195W
 about 3 H 40M
G-B100/290W
 about 4 H 40M

Aluminium body (obtain heat dissipation and EM shut-off effects from aluminum.)

The Gen Energy G-CB100 has a rigid aluminium alloy body.
In addition to being able to withstand the four charging terminals, their own heating performance is also excellent, which can help to reduce heat generation by more than 12% compared to a charger made of plastic (simultaneously with a high-power cooling fan).

It also has good internal EM shut-off effects.

high speed charging

The Gen Energy G-CB100 charger has the world's fastest charging speed.

It charges up to 6 Amps at the same time, showing up to 8x faster charging efficiency than the third party.
This feature applies when you use your own 290W, 195W and 160W batteries.
(The 98W battery will charge up to 3.0A.)

Anti Overheat

The Gen Energy G-CB100 charger has a precision temperature control to prevent overheating.

To prevent overheating that may occur during high speed charging, the battery condition is checked and the condition of each battery is assessed to specify the best current.

This allows each battery to have an optimum state of charge.

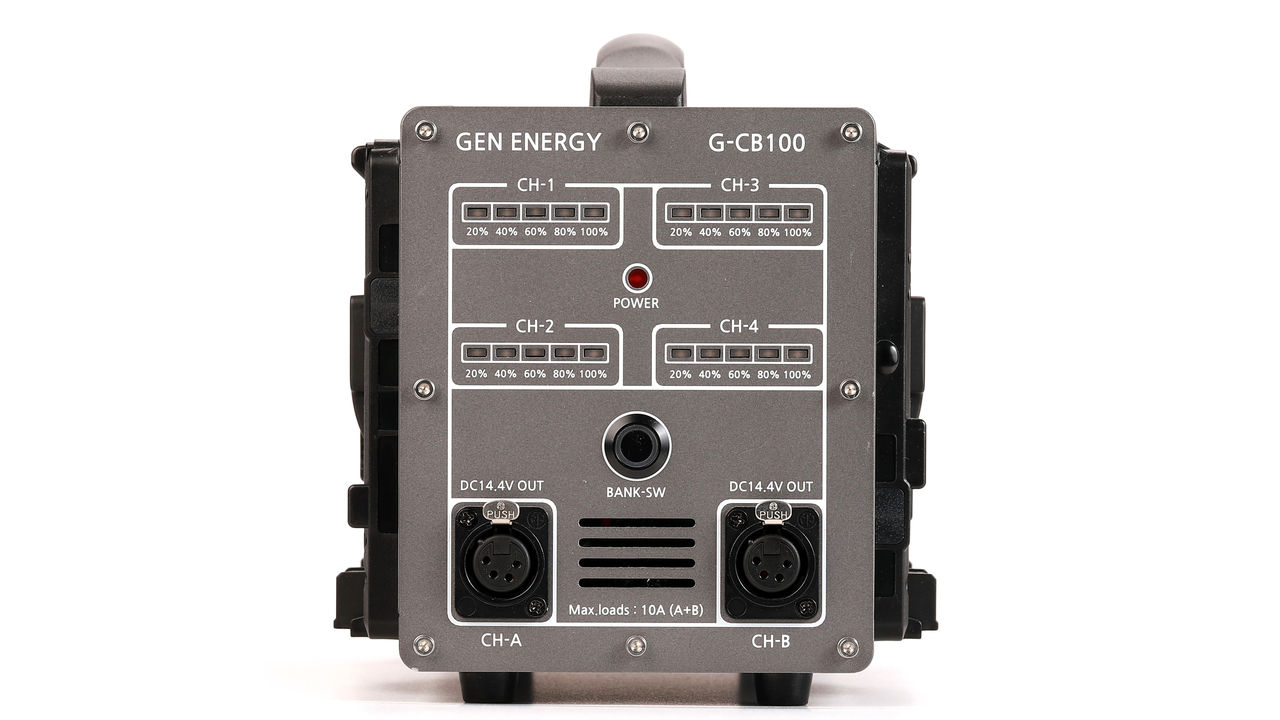

100 levels of indicator

The Gen Energy G-CB100 measures the voltage inside the battery in 100 steps and reflects it in real time.
This is indicated by 5 LED indicators. When the 5 indicators are turned on, they are displayed in a simplified format, such as 100% state of charge, 99~95%, and 94~90%. Because they do not adopt low-durable displays such as liquid crystal panels, they can cope with shock and temperature changes.
