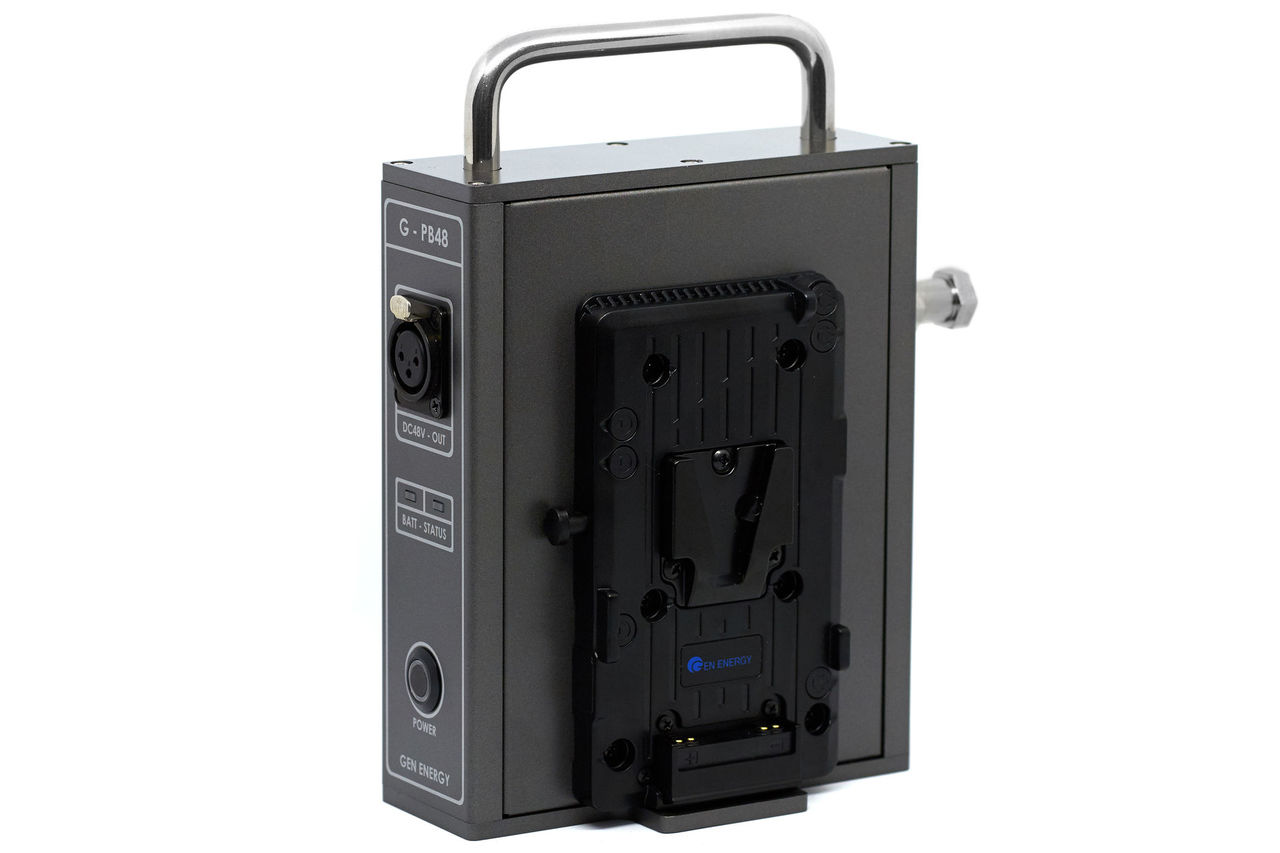

G-PB48 ARRI SKYPANEL S60 2 BATTERIES POWER SUPPLY
  • Power distributor designed with Gen Energy’s advance PCB, firmware and chipset.
  • G-B100/290W 22A battery required. (standard 14.4V battery).
  • Two G-B100/290W 22A batteries can power 48V, 10A.
  • Compact and light enough to mount and carry.
SKYPANEL SERIESRun time : Power set to 100%
S60/1201H 20M Max.
S302H 40M Max.
S360N/A
G-PB48
Connector3-pin XLR
Power DC output48V , 10A regulated
Batteries input
14.4V 22A ( min. 264W )
Batteries
G-B100/290W 22A ( 2pcs required )
Weight
1.5Kg (3.3 lbs) (without batteries)
Dimension
217 x 154.8 x 92 mm (8.54 x 6.09 x 3.62" )
Operating temp.
-10 ~ +45 °C recommended

ARRI SKYPANEL S60/120 2 BATTERIES POWER SUPPLY SOLUTION.
