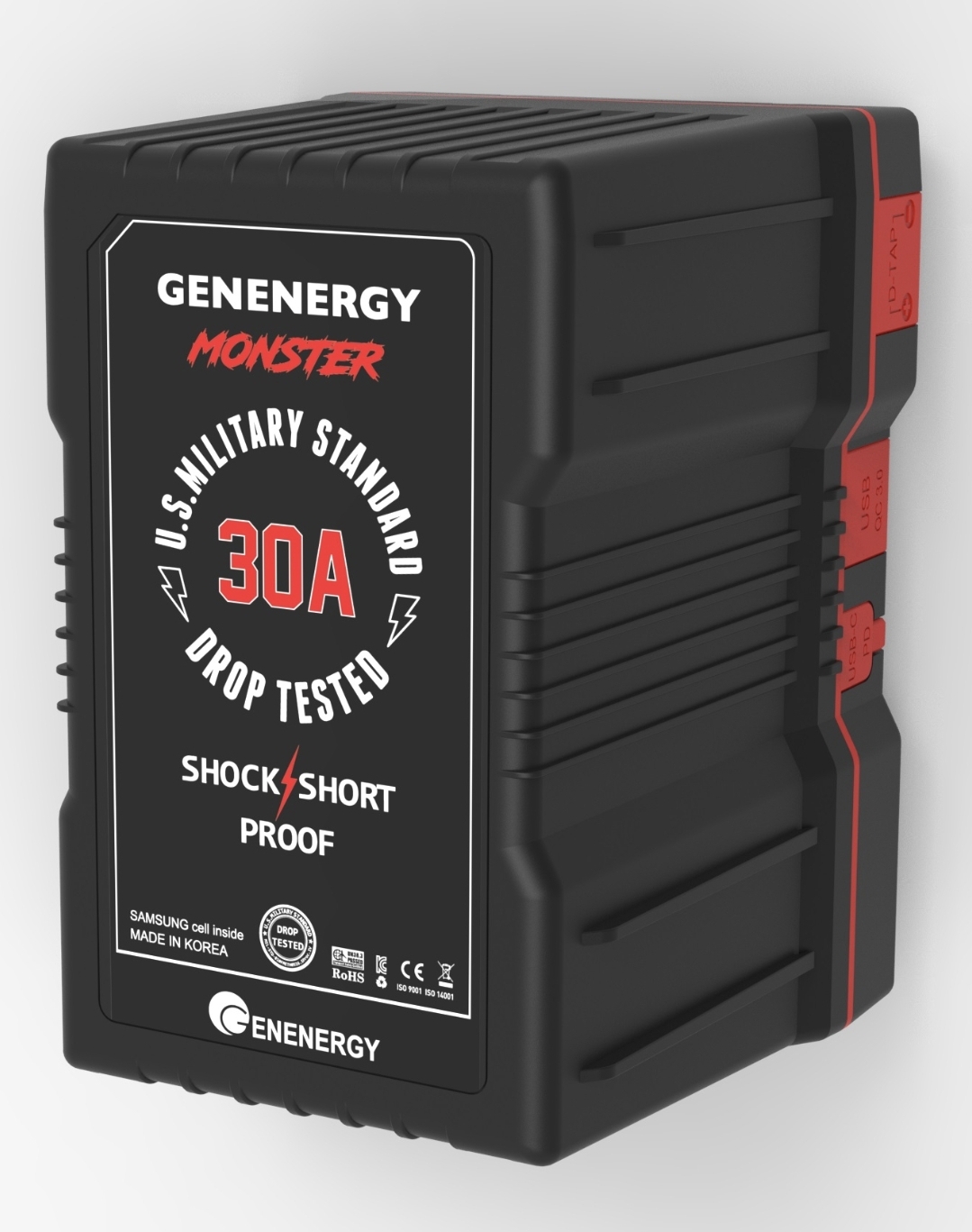

G-B100/432/30A V-MOUNT BATTERY  (432Wh)
  • This battery has 30A Min.360W, the biggest power in the world, which was born for high power lightings.


  •  You can use  2 pcs of batteries for Skypanel S60 and  other high power lightings.


  •  G-P22ALF plate is needed for ALEXA LF with this 1 pc of battery.


  •  G-PB48  power bank is needed for Skypanel S60.


  •  Shock-proof, Short-proof, Low resistant.




CHARGE

  • Do not use the battery (Main, D-Tap, USB) while charging. If so, it may cause a charging error or damage the charger.
  • Charge the battery to full before first use.
  • When you charge this battery, Battery capacity LED gauge button will turn on indicating the capacity being charged.
  • Lithium ion batteries have a slight self discharge, therefore it is recommended to charge prior to use.

DISCHARGE

  • Do not use the battery (Main, D-Tap, USB) while charging. If so, it may cause a charging error or damage the charger.
  • Camera's low voltage alarm is recommended to set 13V.
  • Battery will stop at 12V to extend its life.
  • * Microwave transmitters with 5W outputs or over should be kept as far away from the battery. It may disrupt or stop supplying power.
  • Be sure to remove the battery from the device after use. If so, it will consume large standby power and over-discharge protection may be activated.
  • Battery run time reduces when it is working below or above the recommended temperature range.

SPECIFICATION

TYPE
 V-MOUNT BATTERY
Cell chemistryLi-ion
Nominal voltage
DC 14.4V
Capacity30Ah  (432Wh)
 Charge voltage16.8V
Charge currentMax. 6A
Min. discharge power30A  ( 360W)
D-TapOutput nominal voltage : 14.4V
Min. Discharge power :12A  (144W)
USBOutput voltage : DC 5.0V
Max. load : 2.3A
USB A, USB C available
End voltage12V
Battery protection circuitOver-charge, Over-discharge, Over-current ( Cell and Pack separately), Over-temperature, Reverse charge
Ambient temperatureTo charge : 10°C ~ 30°C (32°F ~ 104°F recommended)
To discharge : -20°C ~ 50°C ( -4°F ~ 122°F), 10°C ~ 40°C (50°F ~104°F recommended)
To store : `-20°C ~ 40°C  (-4°F ~ 104°F) (<85% RH)  (less than 1 month)
Dimension97(W) x 146(H) x 110(D)mm
3.82(W) x 5.75(H) x3.82(D)"
Weightapprox. 2,000g / 4.41lbs


✔ SHOCK-PROOF


"The most frequent accident at the site is damage caused by a battery crash. "

The Gen Energy V-mount battery uses PC materials to provide the strongest protection against physical shock and is a flame retardant zero grade (highest grade) material. Based on this, each cell is protected with a container and the battery is protected from falls through a reinforced vertical frame structure. As a result, the U.S. Department of Defense has obtained the qualifications for the product that meets the military standards.

This content is blocked by administrator settings.

Gen Energy battery 30ft Drop Test

This content is blocked by administrator settings.

Gen Energy 98W V-MOUNT BATTERY

"The most frequent accident at the site is damage caused by a battery crash. "

The Gen Energy V-mount battery uses PC materials to provide the strongest protection against physical shock and is a flame retardant zero grade (highest grade) material. Based on this, each cell is protected with a container and the battery is protected from falls through a reinforced vertical frame structure. As a result, the U.S. Department of Defense has obtained the qualifications for the product that meets the military standards.

To achieve this robust durability, we adopted a reinforced vertical frame structure, designed with multiple junction structures, which allows eight bolts to retain frames. Inside, a container structure holder was applied to each cell to prevent an internal shock that could be present in a single cell.

Containers in the Gen Energy V-mount battery are made from polycarbonate material. It shows excellent durability in the harshest-case tests, and has passed the Millspeck test more than 1.2 meters, 26 times.

Self-test has passed 10 metres drop test, 1.5 metres 150 drop test, 1600 RPM vibration test, -20 ° C to + 60 ° C (-4 ° F to 140 ° F) operation test, and has durability that is acceptable for a 3 tonne mass of pneumatic vehicle.


✔ SHORT-PROOF


"When I checked after the shooting, the battery melted. "

The Gen Energy V-Mount battery can provide sufficient stable power supply in extreme environments and can handle more devices. Internal circuits do not use wires; they use the highest-grade elements. The main board is built on a 20A basis, and the specially built V-mount connections withstand 12A. Each of the two dabs can easily digest a maximum capacity of 7A.

This content is blocked by administrator settings.

World's FIRST Short Proof V-Lock Battery (Gen Energy) - 日本語の字幕付き

Powerful electrical protection (Short Proof)

Each cell is mounted separately from the physical space to prevent shock and shock.

This content is blocked by administrator settings.

How world's first short-proof function is working for your valuable equipment !! (Patent pending) .

But we guarantee only our battery is OK, please pay special attention not to make short circuit.

The Gen Energy V-mount battery has a short protection function to cope with the complex environment of the site. Three protection circuits and main fuses operate simultaneously with the show as a function to protect the equipment and the battery in the worst-case scenario, such as short circuits and short circuits for each equipment.


✔ LOWEST IMPEDANCE


All kinds of lightings with v-mount plate can be powered safely and stably. Minimizing the heat through main output with low impedance and low resistance by large pattern. No-wire design can minimize the heat inside and maximize the efficiency of curent. Each end +,- are wide enough to prevent the heat when you use very high current continuously max. 12A, 15A, 22A

Left:Gen Battery (No Heat) Right:Third Battery (Over Heat)

This content is blocked by administrator settings.

Specially made terminal

Highest grade electrical characteristics

The Gen Energy V-mount battery has the most positive properties for electrical resistance in the world of imaging specialist batteries. Based on an advanced internal design, the heat generated by resistance was reduced to a minimum by not using wires, and the same parts were selected and composed of the form for maximum efficiency.

The battery connection has been specially manufactured and discharged to 10 A for temperatures up to 49°C ( 120.2 ° F). Most existing broadcast cameras, as well as lighting that require strong power, are These characteristics provide stable power during prolonged filming to prevent equipment malfunctions and provide the potential to capture critical moments.

Why you should use our battery pack for high current application !!


The scene where the band 'Asian Chershot' music video was filmed.

The battery contains the functions that the filming experts need the most.


"We finished shooting late, but we have 8 hours until the call time tomorrow. 8 batteries to be charged..."


When I heard the voice of a shooting director working for the Grip team, I thought a lot. I've noticed that there are more batteries to be used for a single shoot than I thought, and I've noticed that if you're on a small screen where you can't use the generator, you're in trouble. This is why the high-speed charging function of the Gen Energy V-mount battery has been developed.

RED EPIC-M 6K Camera with Gen Energy 290W V-MOUNT

high speed charging


The Gen Energy V-mount battery has the fastest charging speed in the world. Up to 6A, four batteries are charged at the same time (with G-C100, G-CB100 chargers) to demonstrate 8x faster charging efficiency than the third party. This function is available on 290W, 195W and 160W batteries. (The 98W battery will charge up to 3.0A.)

The Gen Energy V-mount battery performs real-time, precision cell validation by the Intelligent Cell Balancing Program when charging. As a result, each cell maintains the optimum state of charge. Using the AFE IC, measure the precise cell condition and measure the current due to the ultra-precision resistance of 0.5%. It's the only and most complete technology with software that controls the hardware by measuring its precise battery charge.


" 100% charge before we leave When I arrived in Nairobi, it was one space down."
I heard the director's voice after filming in Kenya, Africa. This is mainly caused by older batteries that do not have battery sleep. The Gen Energy V-mount battery has a super-save function that automatically shuts down the power if it is not connected. In super-save state, storing the battery for one year will not compromise performance.

Long Life

The Gen Energy V-mount battery is manufactured from Samsung's 3,500 mA 18650 lithium-ion battery. Self-examination shows that the most electrical components are the best, and the best parts are selected through periodic testing.
It also protects the battery cell using only 90% of the cell capacity. Due to the nature of the lithium-ion battery, if the remaining battery charge reaches 0%, the life of the battery will fall dramatically. To prevent this, you will be left with a minimum capacity of 10%. Get up to 40% life-boost

The Gen Energy V-mount battery has a super-save capability. If the battery is not used to prevent natural discharge, the main contacts and dabs will go into sleep mode after 48 hours and the USB power after 30 minutes. Press the indicator button once to re-drive the battery. Batteries in super-save mode can be stored at room temperature for one year. (98W 6+ Months)

It is recommended that the Gen Energy V-mount battery use the cell indicator reset function once every 12 months. When the indicator button is pressed for 15 seconds, the processor within the battery checks the inside of the battery to check the status of each cell, such as capacity degradation, to show the correct amount of charge.
