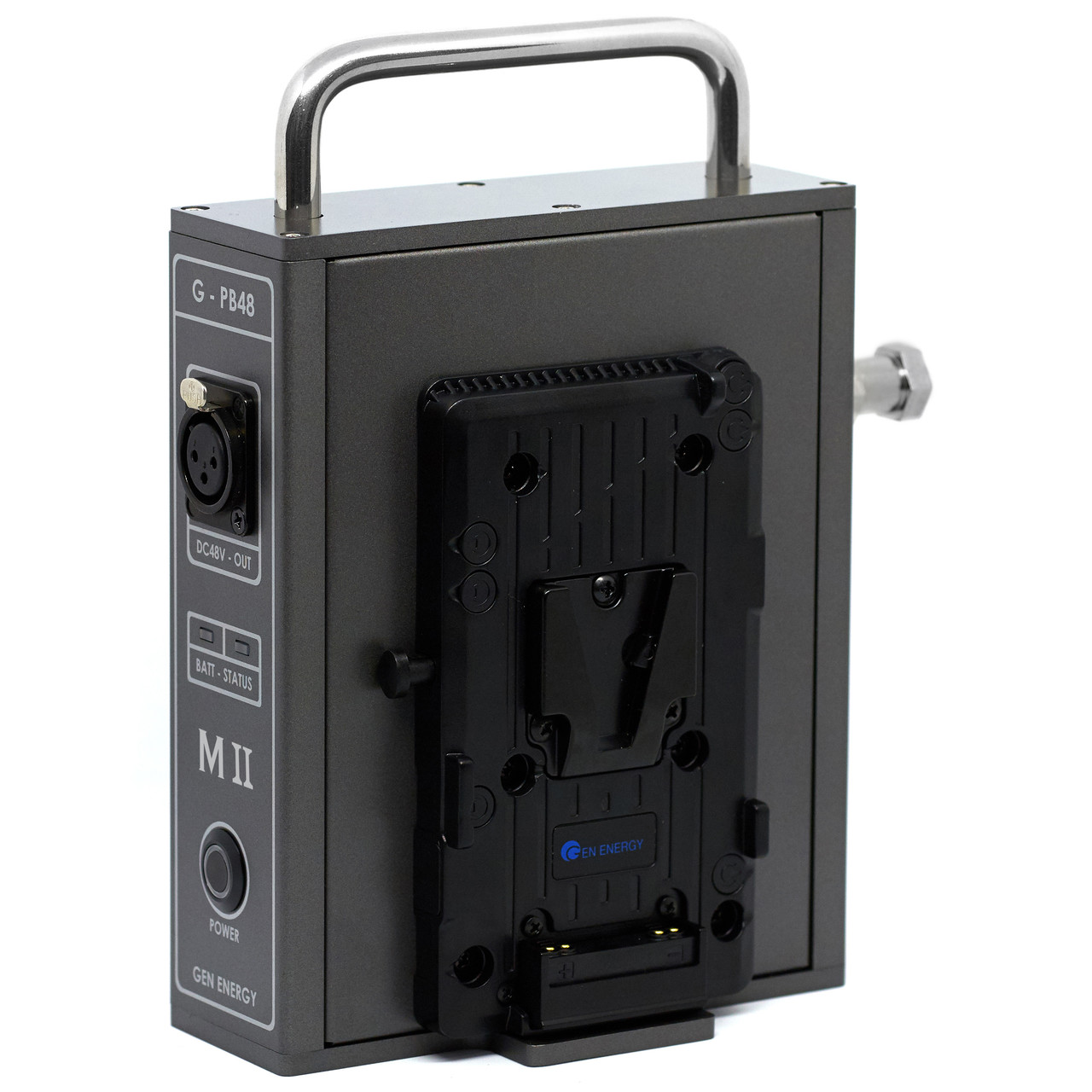

G-PB48 (500W) / G-PB48 M2 (650W)
  • G-PB48 can power max. 500W with G-B100 / 290W 22A  or G-B100 / 390W 26A
  • G-PB48 M2 can power max. 500W with G-B100 / 290W 22A
  • G-PB48 M2 can power max. 650W with G-B100 / 390W 26A
  • Use only GEN ENERGY's 22A or 26A batteries.
  • Use only 3-pin XLR with thick cable over 16AWG.
SKYPANEL 100% power working time with G-B100 /290 22A
S60/1201H 20M Max.
S302H 40M Max.
S360N/A
G-PB48 M2
Connector3-pin XLR
Power DC output48V , 13.5A regulated
Batteries input
14.4V 26A ( min. 312W )
Batteries
G-B100/390W 26A ( 2pcs required )
Weight
1.5Kg (3.3 lbs) (without batteries)
Dimension
217 x 154.8 x 92 mm (8.54 x 6.09 x 3.62" )
Operating temp.
-10 ~ +45 °C recommended

ARRI SKYPANEL S60/120 2 BATTERIES POWER SUPPLY SOLUTION.
